Property
|
Value
|
|
Material /
Finish
|
SCM440 / Black Oxide (Standard Protective
Coating)
|
|
Applicable
Reference Standard
|
ISO 898-1 (Property Class 10.9)
|
|
Bolt Type
|

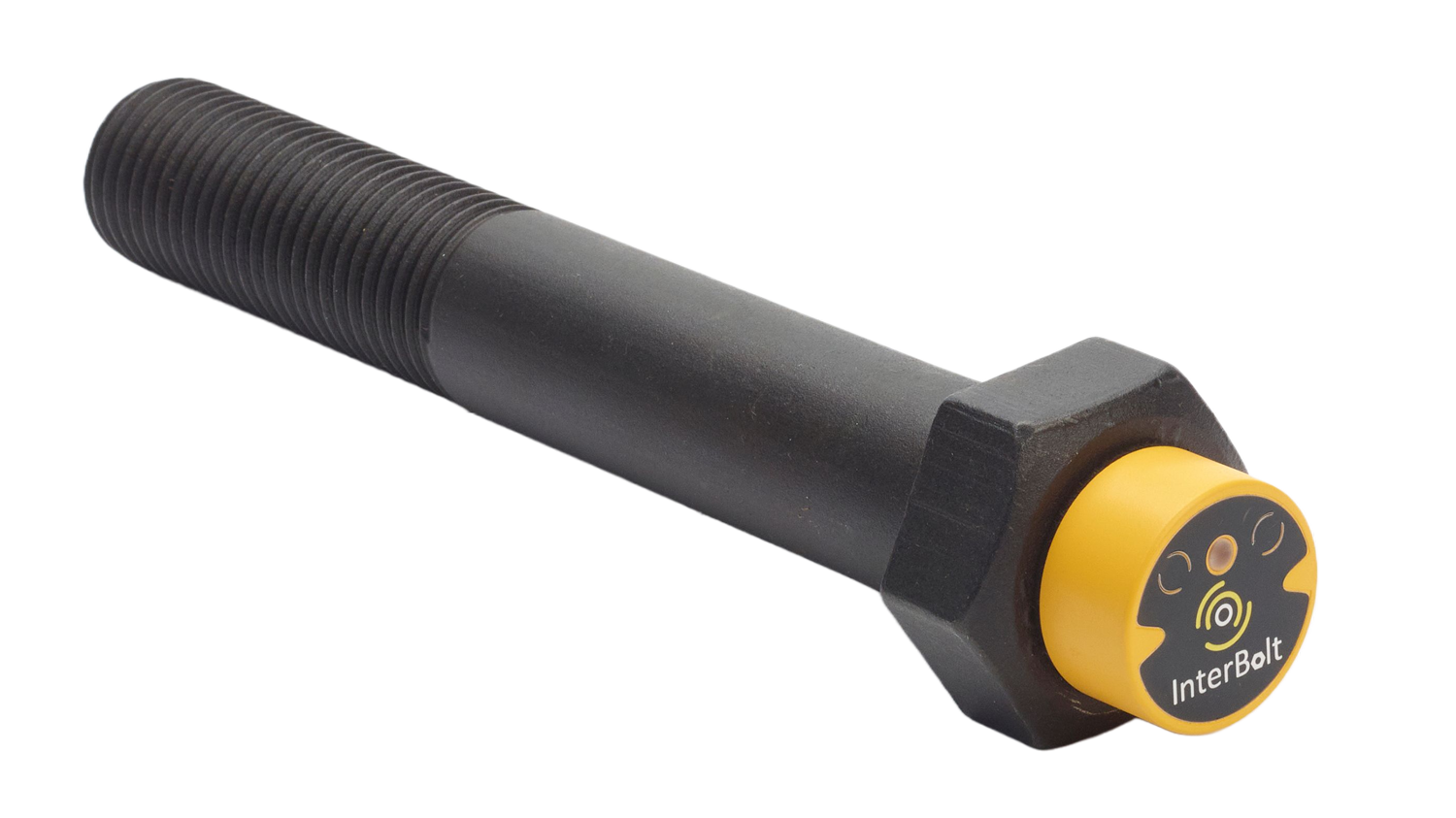

Hex Head Bolt with Embedded Load Sensor
|
|
Thread Diameter
|
M30
|
|
Pitch
|
3.5 mm
|
|
Length
|
135 mm
|
|
Stud Length
|
|
|
Thread Length
|
|
|
Thread
Direction
|
Right-hand
Thread
|
|
Tensile
Strength
|
Property Class 10.9 (Approx. 1040 MPa)
|
|
Model Name
|
E0508-M030-135-01
|
|
Maker
|
InterBolt (UK)
|
|
Option &
Others
|
Integrated Wireless Bolt Load Monitoring
Sensor
|
|
Sensing Range : 0 ~ 691 kN
|
|
Battery Voltage
: 3.6
V
|
|
Communication : Wireless Data
Transmission (Gateway IG0011 Compatible)
|
|
Application
|
Structural Bolt Preload Monitoring /
Industrial Equipment Load Monitoring / Steel Plant Application
|
