¸ð´ÏÅ͸µ ¼Ö·ç¼Ç > ¹«¼± ¼Ö·ç¼Ç > IDE

¹«¼± Áøµ¿ ¸ð´ÏÅ͸µ ½Ã½ºÅÛ

IDE

´ëºÎºÐÀÇ ¹«¼± ¼¾¼­´Â ¹èÅ͸®¸¦ »ç¿ëÇÕ´Ï´Ù. ÀÌ ¹èÅ͸® ¿À·¡ »ç¿ëÇϱâ À§Çؼ­ ½Ç½Ã°£ ÃøÁ¤ÀÌ ¾Æ´Ñ ÁÖ±â ÃøÁ¤À» ÁøÇàÇÏ°í ÀÖÀ¸¸ç, ÁÖ±âÀûÀ¸·Î ¹èÅ͸®¸¦ ±³Ã¼ ÇØÁà¾ß ÇÏ´Â ´ÜÁ¡ÀÌ ÀÖ½À´Ï´Ù.
IDE´Â IoT ±â¹Ý ¹«¼± ¸ð´ÏÅ͸µ ¼Ö·ç¼ÇÀ¸·Î ±âÁ¸ ¹«¼± ¸ð´ÏÅ͸µÀÇ ´ÜÁ¡À» °³¼±ÇÏ¿© Àü¿øÀ» Á÷Á¢ °ø±ÞÇØÁÖ¾î ½Ç½Ã°£ÃøÁ¤ÀÌ °¡´ÉÇÏ°Ô Çϸç, ¹ø°Å·Î¿î ¹èÅ͸® ±³Ã¼ÀÛ¾÷ÀÌ ÇÊ¿ä ¾ø´Â ¹«¼± ¼¾¼­ÀÔ´Ï´Ù. ¶ÇÇÑ, Ŭ¶ó¿ìµå·Î ¹Ù·Î Àü¼ÛµÇ¾î ¾ðÁ¦ ¾îµð¼­µç ´ë»ó¼³ºñÀÇ »óŸ¦ ¸ð´ÏÅ͸µ ÇÒ ¼ö ÀÖ½À´Ï´Ù.

Á¦Ç° Ư¡

Features
¡¤  ½Ç½Ã°£ ÃøÁ¤ ¹«¼± Áøµ¿ ¼¾¼­ (Àü¿ø°ø±Þ ŸÀÔ)
¡¤  °£ÆíÇÑ ¼³Ä¡
¡¤  °áÇÔ °¨Áö ¹× °æ°í

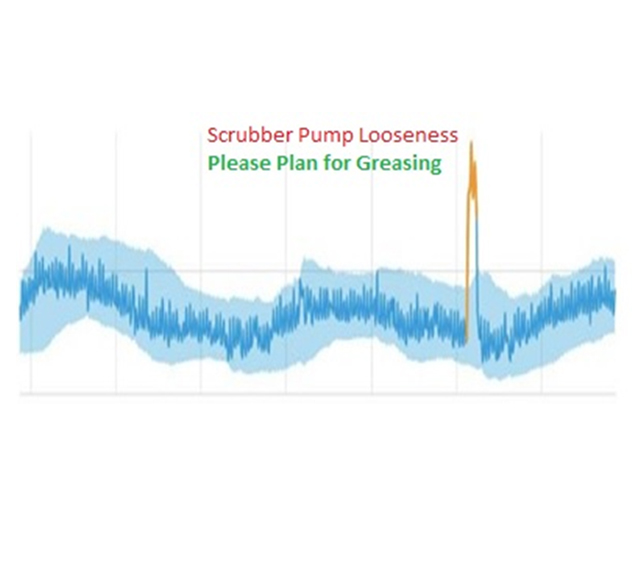

¡¤  °æÇâ ¸ð´ÏÅ͸µÀ» ÅëÇÑ ½Ç½Ã°£ ¹× Àå±â µ¥ÀÌÅͺ¸°í

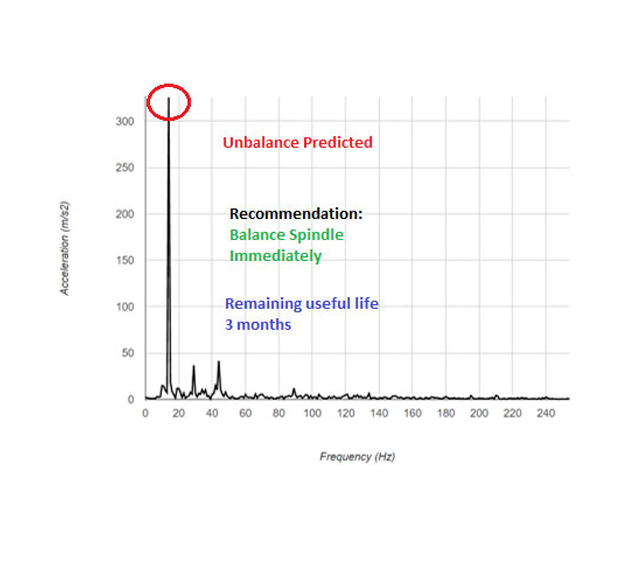

¡¤  ȸÀü ¼³ºñÀÇ ½ºÆåÆ®·³ ºÐ¼®À»À§ÇÑ FFT
¡¤  LED ¹× »ö»ó Äڵ带 ÅëÇÑ ½Ã°¢Àû Çǵå¹é
¡¤  Á÷°üÀûÀÎ ¼ÒÇÁÆ®¿þ¾î ¹× ¿ø°Ý ¼³Á¤ °¡´É
¡¤  ÀÚµ¿¾Ë°í¸®ÁòÀ¸·Î ÀÓ°è°ª ¼±Á¤ ¹× °³¼±
¡¤  Áøµ¿, À½Çâ, ¿Âµµ 3-in-1 ¸ð´ÏÅ͸µ ½Ã½ºÅÛ
¡¤  ¼¾¼­¿¡¼­ ´ÙÀÌ·ºÆ® Ŭ¶ó¿ìµå Àü¼Û
¡¤  ¼­¹ö ¹× ¼ö½Å±â ºÒÇÊ¿ä

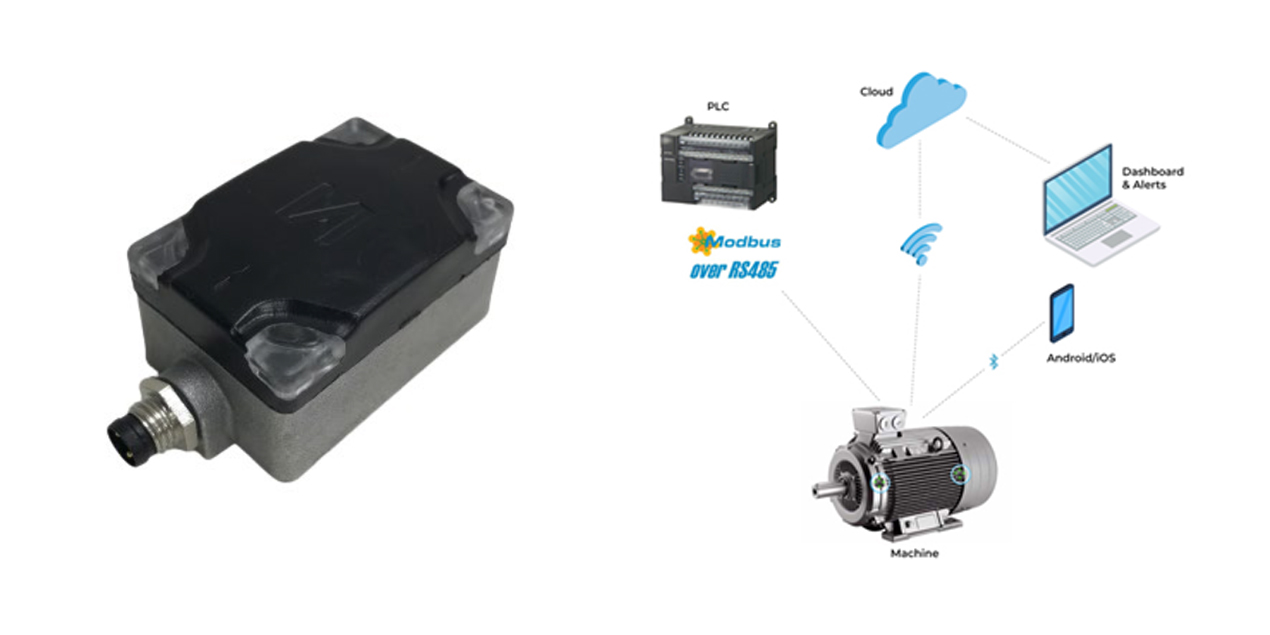

¡¤  PLC,DCS È®Àå ±¸¼º
¡¤  Áï°¢ ÀûÀÎ »óÅ ȮÀÎ, LED Áö½Ã
¡¤  ¸¶±×³×ƽ ¸¶¿îÆà ÀÏüÇü
¡¤  IP68 ÀÎÁõ

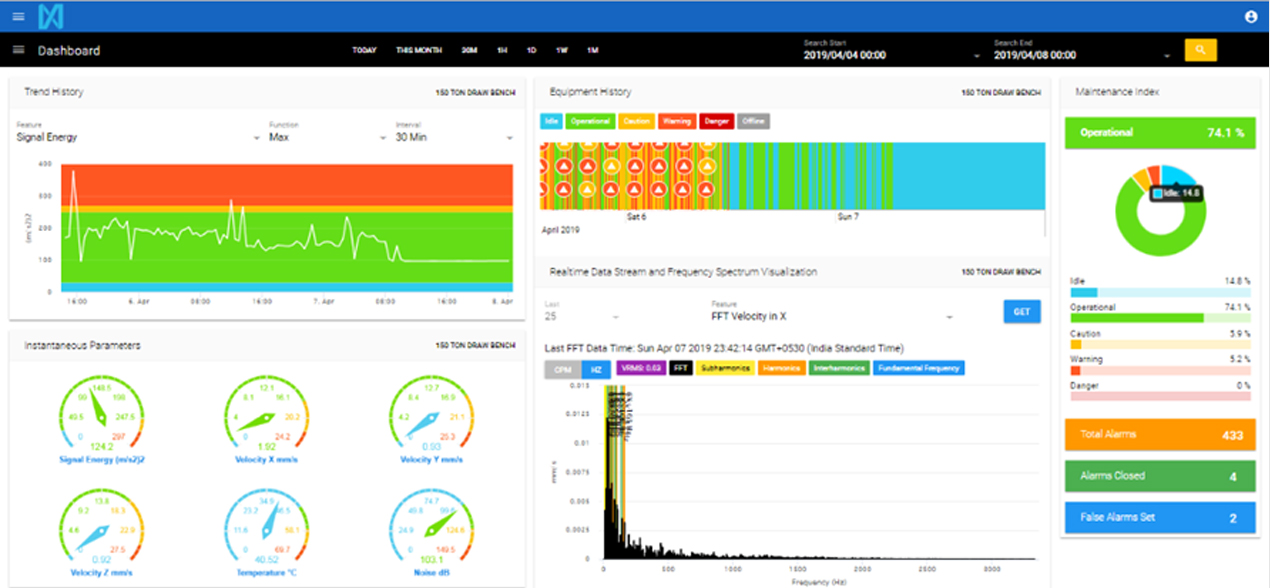

¼ÒÇÁÆ®¿þ¾î

Software

À¥ Ŭ¶ó¿ìµå

Á¦Ç° »ç¾ç

Product Specifictions
Vibration Sensor MEMs based Triaxial accelerometer Audio range 50 dB to 120 dB
Frequency range 10 Hz to 1300 Hz (X, Y and Z axis) Protocol (Functionality) Modbus RTU (Slave) , RS 485, 2 Wire
Default configuration Fmax: 1300 Hz and LOR: 200 to 3200 WiFi features 40 m – 50 m open-air range
Sampling rate Up to 3.3 kHz BLE features 5 m open-air range
Sensitivity 0.122 mg/LSB (¡¾4G) Power supply External power supply 24 VDC
Resolution 16 bit Enclosure Polycarbonate
Derived values 3-axis acceleration RMS and velocity RMS
3-axis acceleration and velocity FFT
3-axis spectral features as per configuration
LEDs 4 RGB LEDs
FFT frequency resolution (delta-f) Configurable up to 0.1 Hz Size 46 (L) mm x 32.6 (W) mm x 24.5 (H) mm
Shock Tolerance Range 10,000 g for 0.2 ms Weight 80g
Contact temperature range -40 ¨¬C to 120 ¨¬C
Vibration Sensor MEMs based Triaxial accelerometer
Frequency range 10 Hz to 1300 Hz (X, Y and Z axis)
Default configuration Fmax: 1300 Hz and LOR: 200 to 3200
Sampling rate Up to 3.3 kHz
Sensitivity 0.122 mg/LSB (¡¾4G)
Resolution 16 bit
Derived values 3-axis acceleration RMS and velocity RMS
3-axis acceleration and velocity FFT
3-axis spectral features as per configuration
FFT frequency resolution (delta-f) Configurable up to 0.1 Hz
Shock Tolerance Range 10,000 g for 0.2 ms
Contact temperature range -40 ¨¬C to 120 ¨¬C
Audio range 50 dB to 120 dB
Protocol (Functionality) Modbus RTU (Slave) , RS 485, 2 Wire
WiFi features 40 m – 50 m open-air range
BLE features 5 m open-air range
Power supply External power supply 24 VDC
Enclosure Polycarbonate
LEDs 4 RGB LEDs
Size 46 (L) mm x 32.6 (W) mm x 24.5 (H) mm
Weight 80g
